| 產(chǎn)地 |
深圳
|
是否進(jìn)口 |
否
|
訂貨號 |
wifi1.5
|
| 加工定制 |
否
|
貨號 |
elm327 wifi 1.5
|
類型 |
汽車故障檢測儀
|
| 檢測系統(tǒng) |
windows，安卓，蘋果
|
電源電壓 |
12（V）
|
工作溫度 |
低于40（℃）
|
| 尺寸 |
8*8*5（mm）
|
品牌 |
vnvtent
|
型號 |
elm327 v1.5
|
本鏈接詳細(xì)介紹如下:

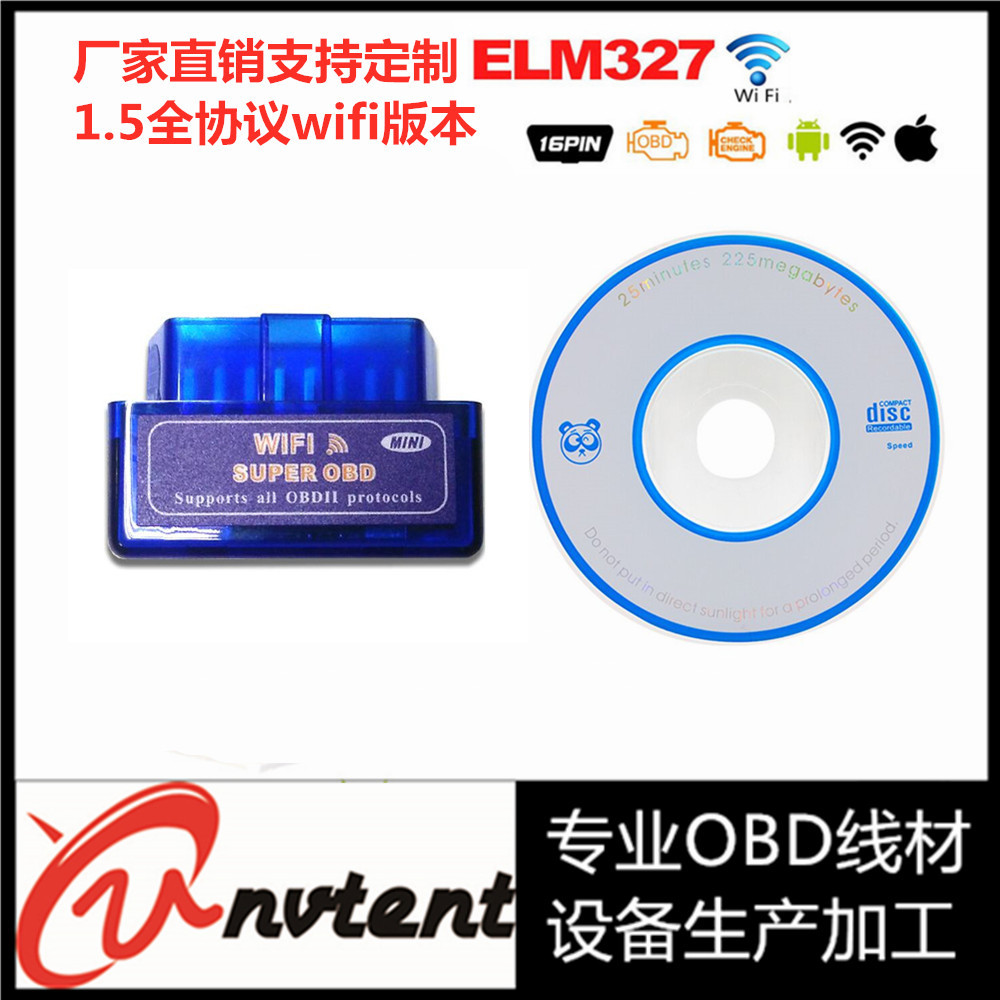

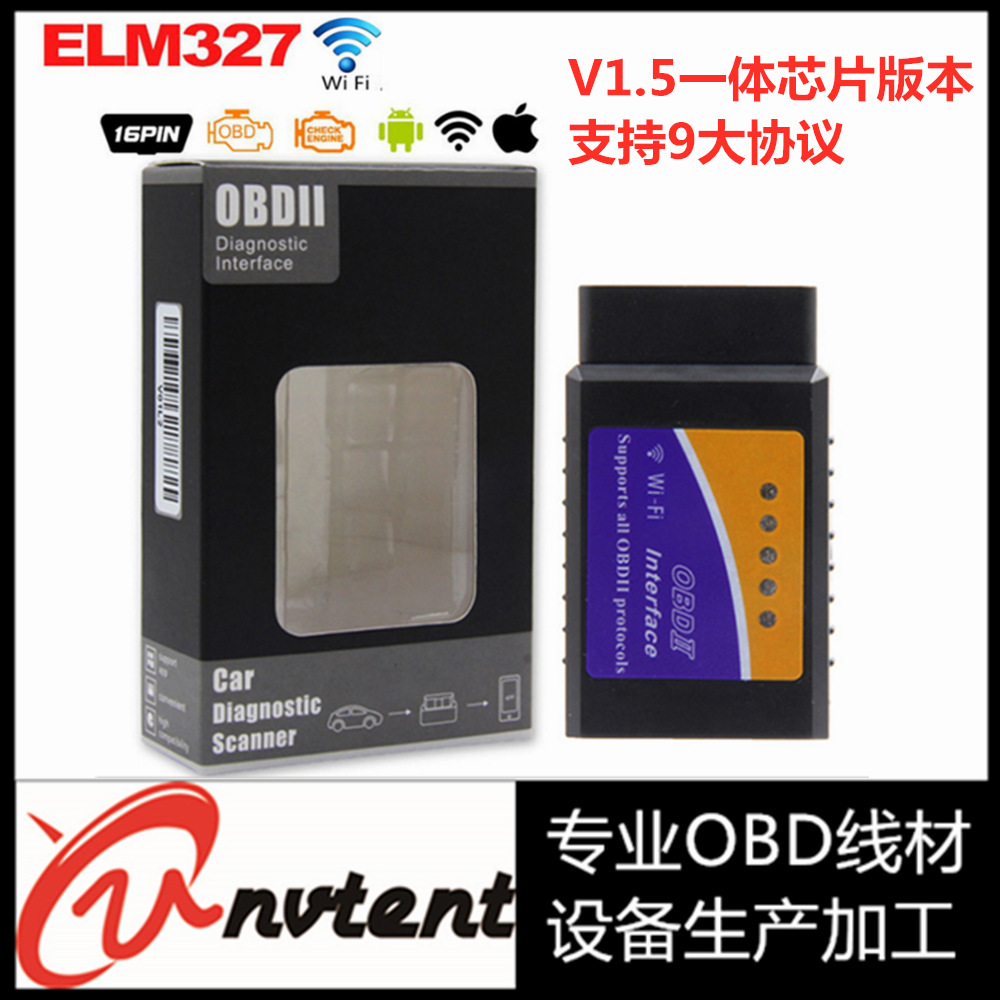

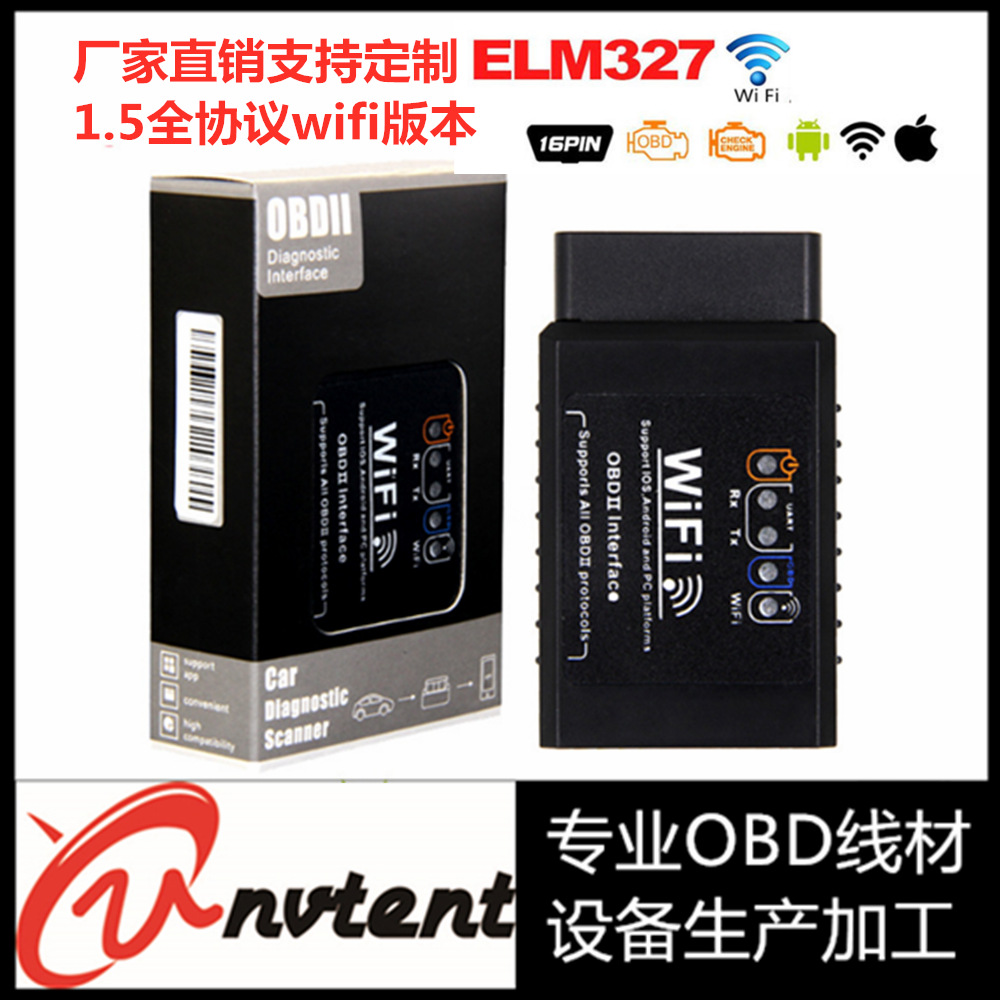

Mini OBD2 Wifi Scanner for Multi-brands CAN-BUS as same as ELM327 Wifi. Supports All OBD2 Protocol works on IOS, Android, Symbian, Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).
Mini OBD2 Wifi Scanner for Multi-brands CAN-BUS as same as ELM327 Wifi.
Top 5 Reasons To Get Mini OBD2 Wifi Scanner:
1. Software Version: V2.1 (depending on software)

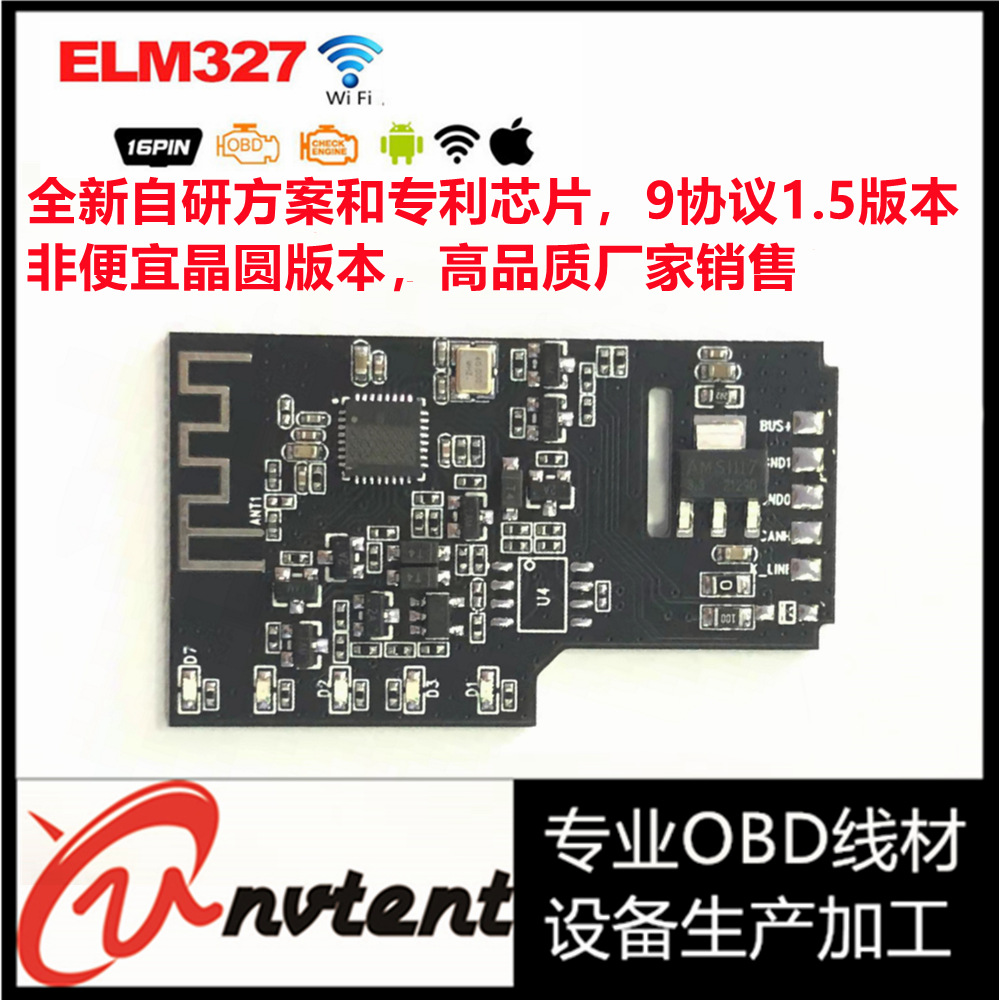

2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (Wifi)
5. Support Four operating platforms (IOS, Android, Symbian, Windows)
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Mini OBD2 Wifi Scanner Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
Mini OBD2 Wifi Scanner Specifications:
SSID: WiFi_OBDII
IP: 192.168.0.10
Port: 35000
Communication: WIFI
Master Chip: ST
Support System: IOS, Android, Symbian, Windows
Working Voltage: 9v ~ 16v
Working Current: 65mA
Standby Current: 45mA
Operating temperature: -40 ℃ ~ 85 ℃
Working Humidity: less than 60%
Size: 45mm * 25mm * 75mm
Compatible systems:
Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.
Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
IOS: Auto Doctor, Mini OBDII
Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBDScope
Package List:
1pc x Mini OBD2 Wifi Scanner
1pc x Box
