| 產(chǎn)地 |
CHINA
|
是否進口 |
否
|
訂貨號 |
VS890 內(nèi)置13種語言
|
| 加工定制 |
否
|
貨號 |
VS890 OBD2 SCANNER
|
類型 |
發(fā)動機故障診斷儀
|
| 電壓 |
9-15（V）
|
工作溫度 |
0~60（℃）
|
品牌 |
VGATE
|
| 型號 |
VS890
|
適用車型 |
所有車型
|
主要下游平臺 |
ebay,亞馬遜,wish,速賣通,獨立站,LAZA
|
不帶電磁 內(nèi)置13種語言
跨境重量
Description:
VS890 Weight:0.7KG Package:25.5cm*18.5cm*7.5cm

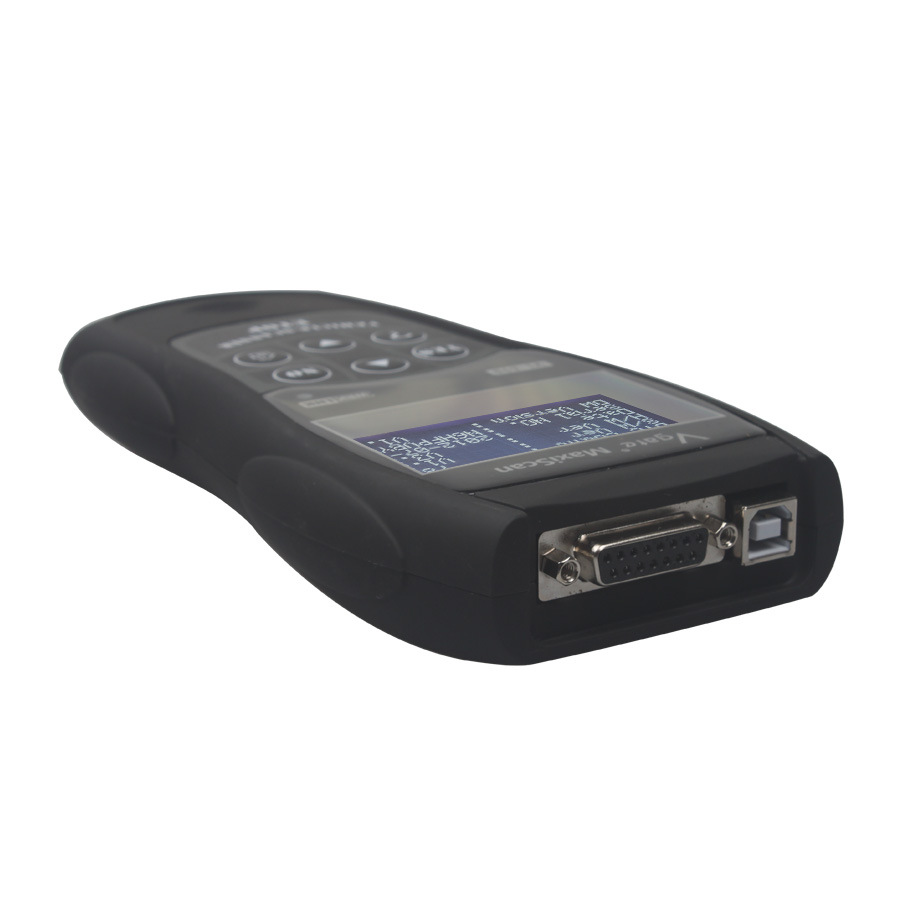

Vgate Scan Tool VS890

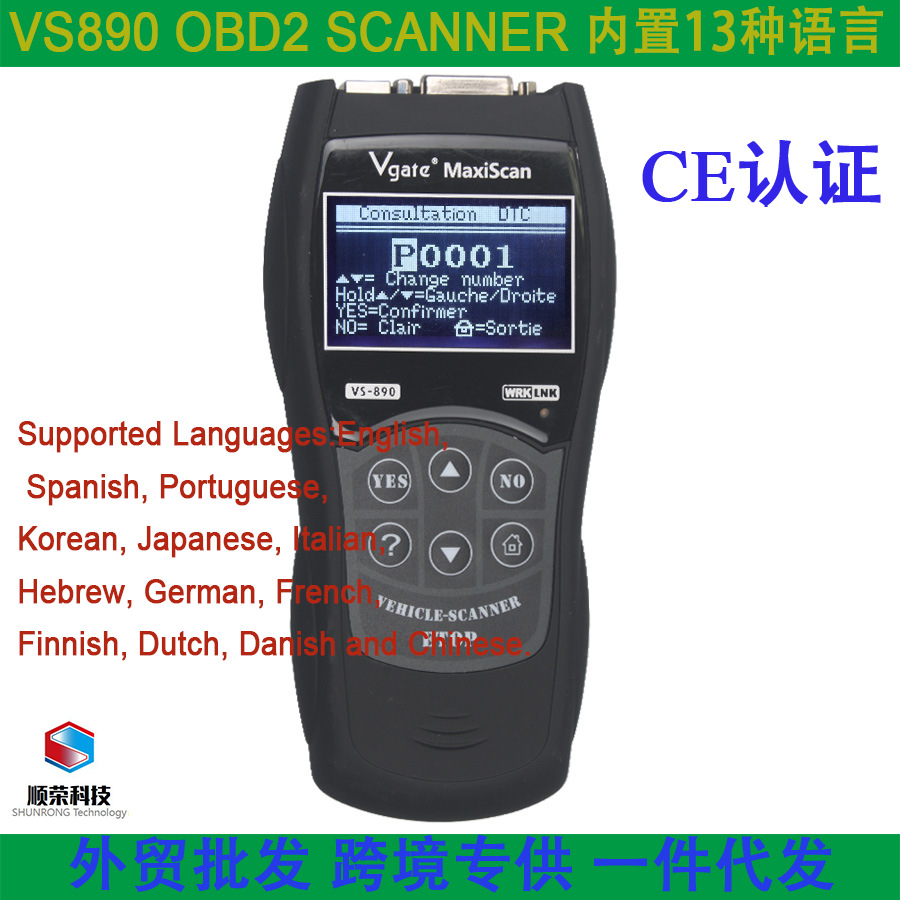

Supported Languages:English, Spanish, Portuguese, Korean, Japanese, Italian,Hebrew, German, French, Finnish, Dutch, Danish and Chinese.
Description:
Features:
1.13languages available
2.LCD:3 inch black mask LCD, wide visible area, high contrast .The contents is readable even in strong sun shine.
3.ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.) Patent No.200830010963.5.
4Harmless fade-resistant paint.
5.Rubber oil sprayed housing; slide, dirty, and vibration proof.
6.Passed EMI/EMC test.
7.High quality PET 6-key film keypad.(3M harmless glue)
8.CE,FCC,RoHs Certified
9.Support manually input DTC Look-up
10.Read DTCs
11.Clear DTCs
12.Data stream
13.Freeze frame
14.I/M Readiness
15.O2 Monitor Test
16.On-Board Mon Test
17.Component Test
18.Vehicle Info.
19.Modules Present
20.Unit of Measure
21.State Emission
22.Read All DTCs
23.Read Stored DTCs
24.Read Pending DTCs
25.Detailed help information
26.Capable of showing probable cause of a DTCs.
27.Up to 161 data items,each of them is with online help information.
28.Reset engine MIL
29.This operation will erase all DTCs , freeze frame Data , oxygen sensor data, and reset IM Monitors and MIL.
Vgate VS890 Supported Protocol:
SAE J1850 PWM
SAE J1850 VPW
ISO9141
KWP FAST INIT
KWP 5BAUD INIT
CAN 11BIT 500K
CAN 29BIT 500K
CAN 11BIT 250K
CAN 29BIT 250K
CAN_USER1 11B 125K
CAN_USER1 29B 125K
CAN_USER2 11B 50K
CAN_USER2 29B 50K
Full CAN BUS support for new cars
11 Bit and 29Bit CAN
Capable of communicating with multi-ECU System

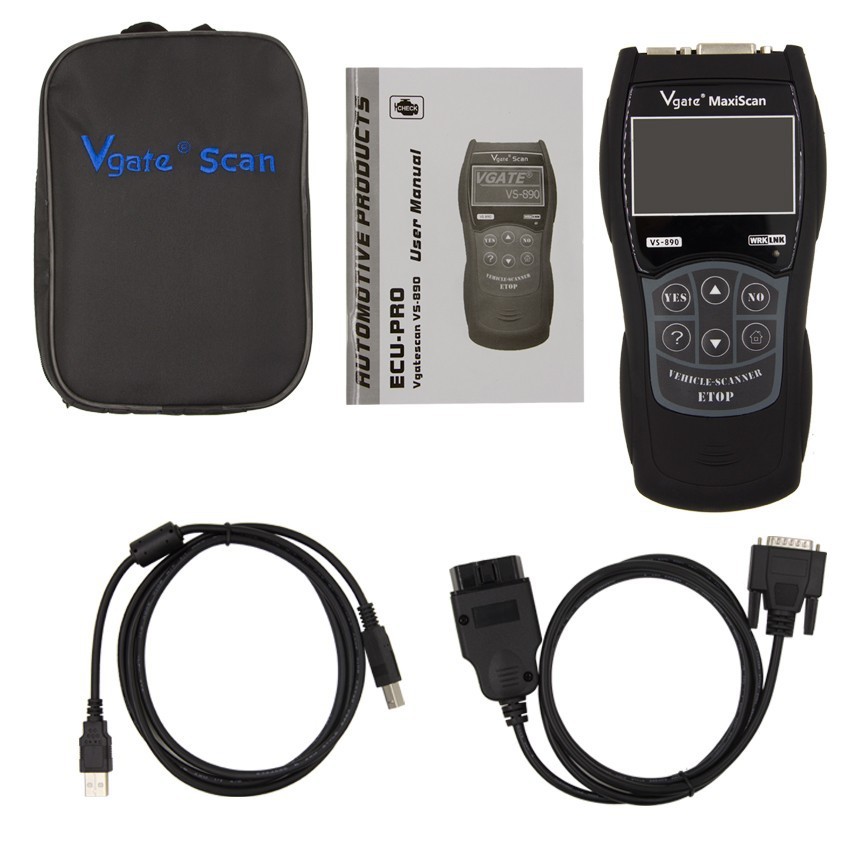

Package List:
Package list:
1 * Auto Diagnostic Scanner

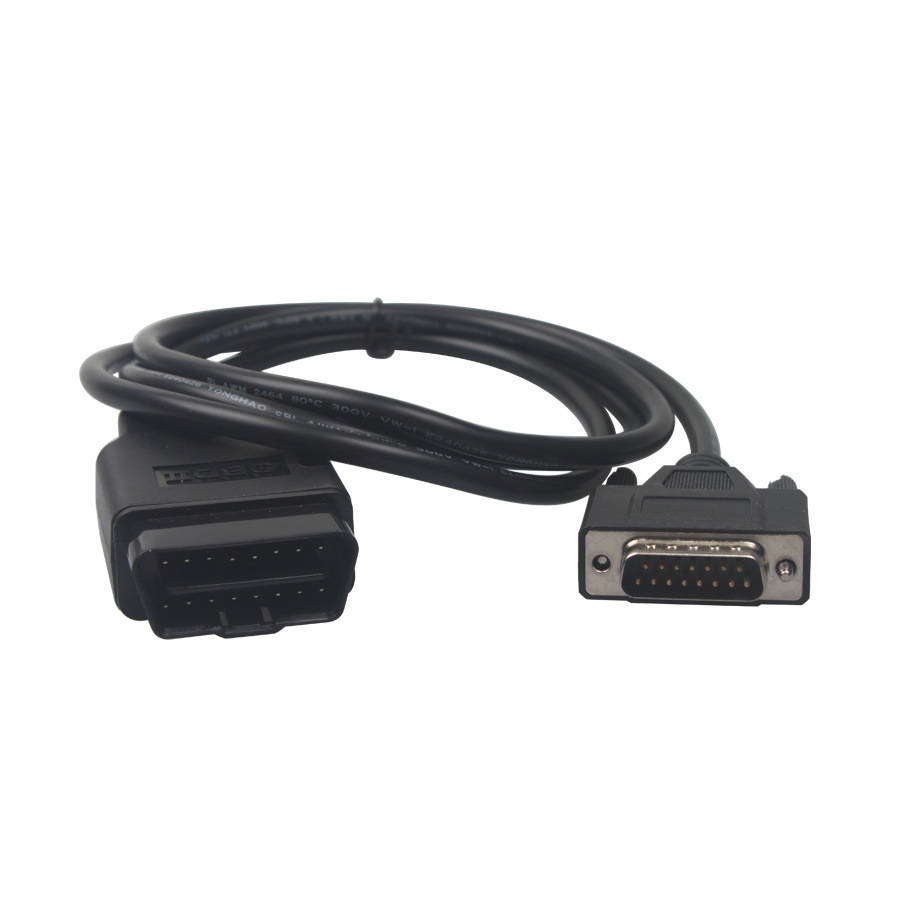

1 * OBD2 Cable

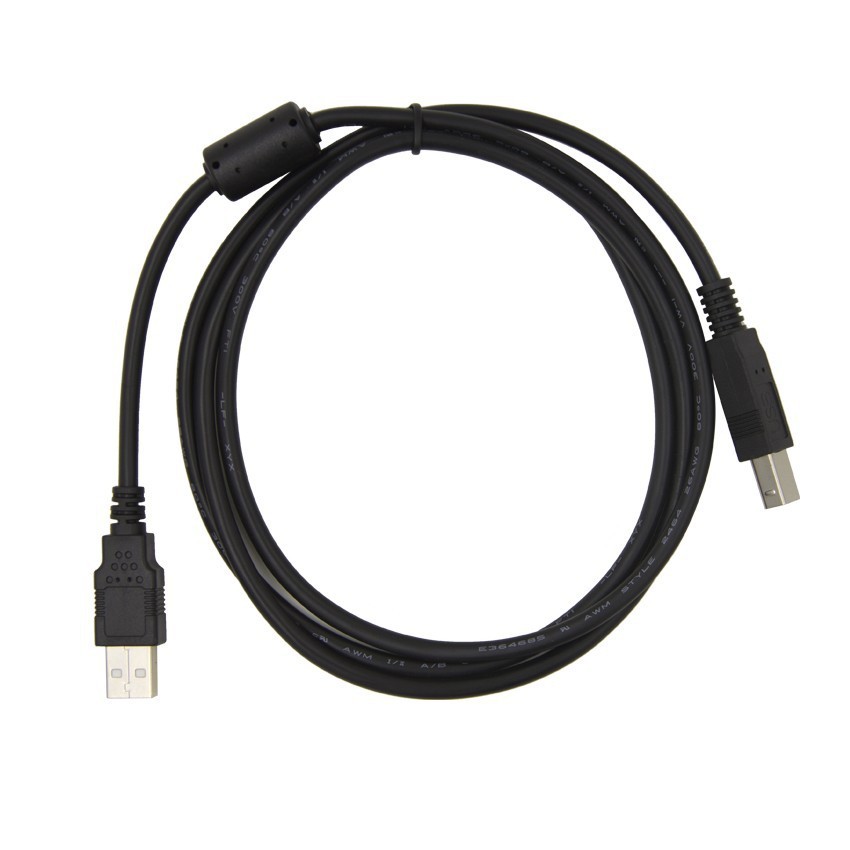

1 * USB Cable
1 * English User Manual
1 * Nylon Bag
