| 產地 |
深圳
|
是否進口 |
否
|
訂貨號 |

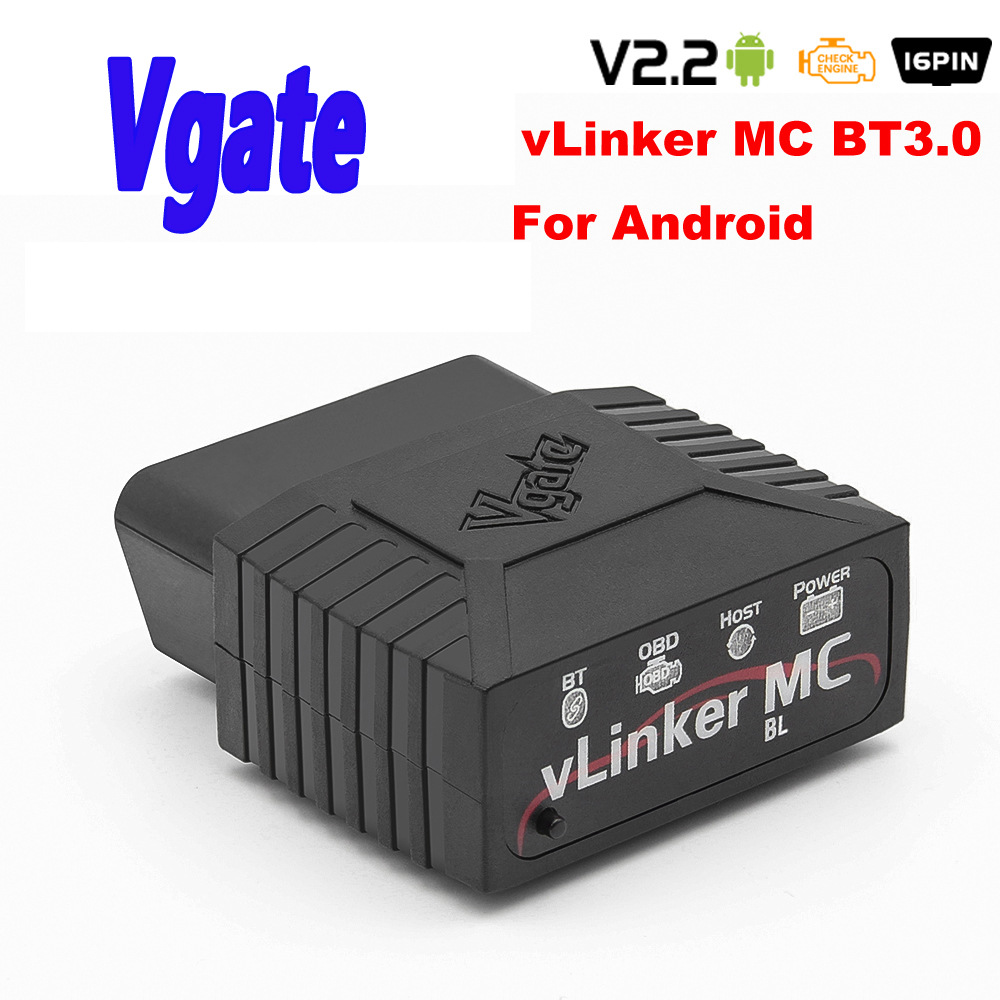

VlinkER MC BT 3.0
|
| 加工定制 |
是
|
貨號 |
VlinkER MC BT 3.0
|
類型 |
汽車故障診斷儀
|
| 品牌 |
Vgate
|
型號 |
VlinkER MC BT 3.0
|
適用車型 |
96年后的OBD車
|
| 主要下游平臺 |
ebay,亞馬遜,wish,速賣通,獨立站,LAZADA
|
主要銷售地區 |
非洲,歐洲,南美,東南亞,北美,東北亞,中東
|
有可授權的自有品牌 |
是
|
Vgate vlinker MC Bluetooth OBD2 Diagnostic Scanner - Support Single Wire CAN(GMLAN) & Medium Speed CAN(MS-CAN)

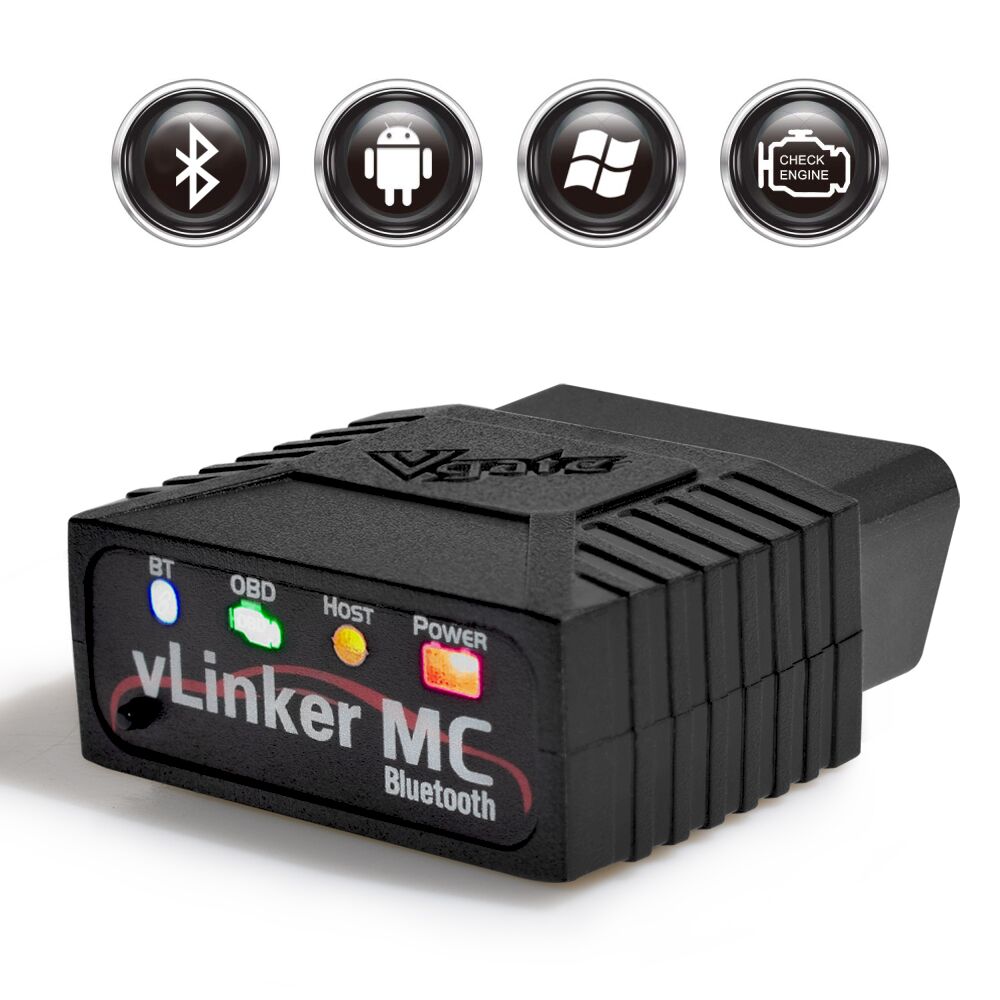

Vgate vlinker MC Bluetooth is a diagnostic scan tool, trip computer, logger, and real-time performance monitor.
-
Transform your Android device, or Windows PC into a professional-grade diagnostic scan tool.
-
Vgate vlinker MC series is the upgraded version of Vgate iCar pro, specifically for coding APP that requires large amount of data transmission.
-
Does not work with iPhone - For Android & Windows only
-
This pocket-size adapter won't obstruct driver legroom and features unparalleled performance, intelligent sleep mode, hacker-proof security, exceptional third party app support.
BatterySaver
-
Thanks to the unique BatterySaver technology you can rest assured that, unlike other OBD adapters, Vgate vlinker MC won't drain your battery if you leave it plugged in.
-
Operating Current is 24 mA, automatic sleep in idle state, sleep current is as low as 3mA.

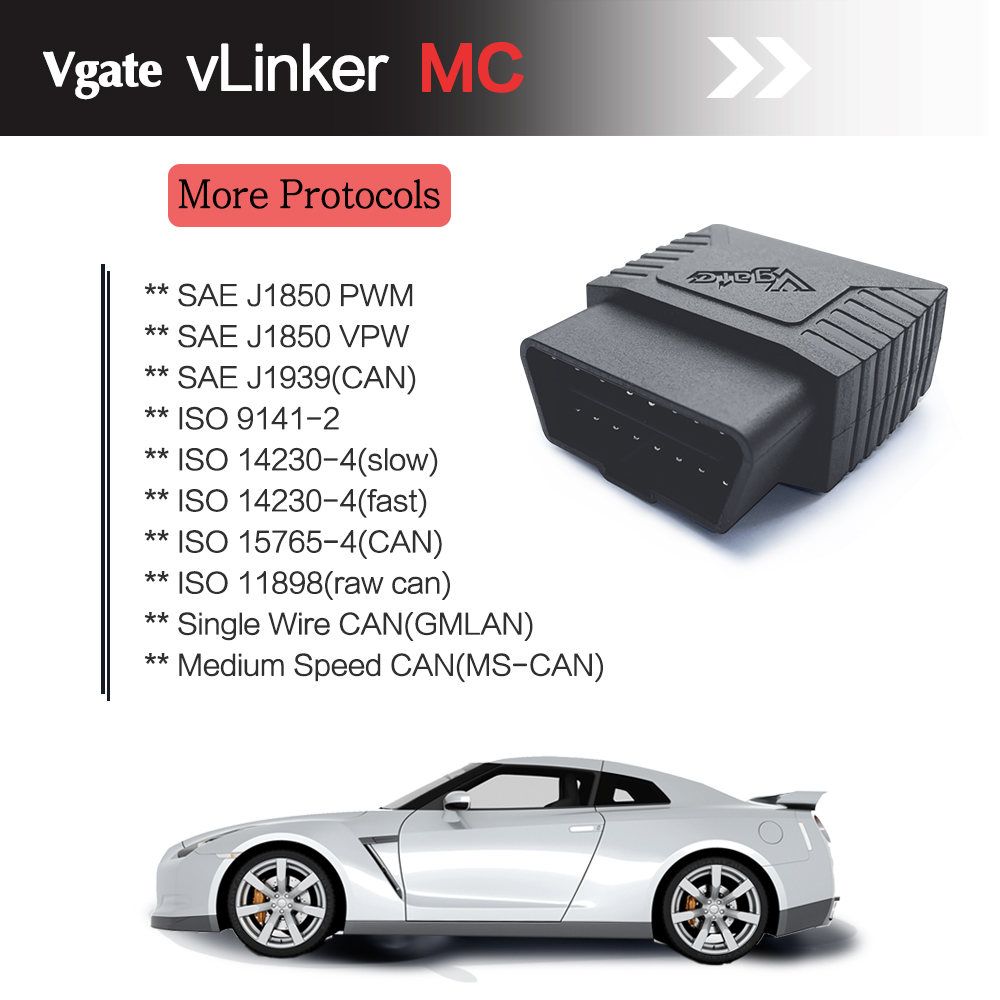

More Protocol Compatible
-
SAE J1850 PWM
-
SAE J1850 VPW
-
SAE J1939(CAN)
-
ISO 9141-2
-
ISO 14230-4(slow)
-
ISO 14230-4(fast)
-
ISO 15765-4(CAN)
-
ISO 11898(raw can)
-
Single Wire CAN(GMLAN)
-
Medium Speed CAN(MS-CAN)
-
Support all 5 OBDII protocols
-
Support SW-CAN (GM)
-
Support MS-CAN (FORD)
Why should I choose Vgate vlinker MC Bluetooth?
? Vgate vlinker MC series is the upgraded version of Vgate iCar pro, specifically for coding APP that requires large amount of data transmission.
? Supports SW-CAN & MS-CAN protocols - can access these proprietary GM & Ford networks in addition to the 5 standard OBD-II protocols.
? Vgate vlinker MC Bluetooth turns your Android or Windows mobile device, tablet, laptop, or PC into a sophisticated diagnostics tool and performance monitor. (Note: Not compatible with Apple iOS products).
? OBD request byte up to 1024 bytes, can meet the needs of some special long frame communication.
? USART data buffer up to 2K bytes, baud rate increased to 500Kbps. Even faster, more reliable, and more feature-rich than its predecessors.
? Fully compatible with ELM's AT command set (ELM327, ELM329) and STN's ST command set.
? Read & clear check engine light - Check diagnostic codes yourself and make informed repair decisions.
For Android Phone - For detailed steps, please refer to the instruction manual carefully to avoid operating errors.

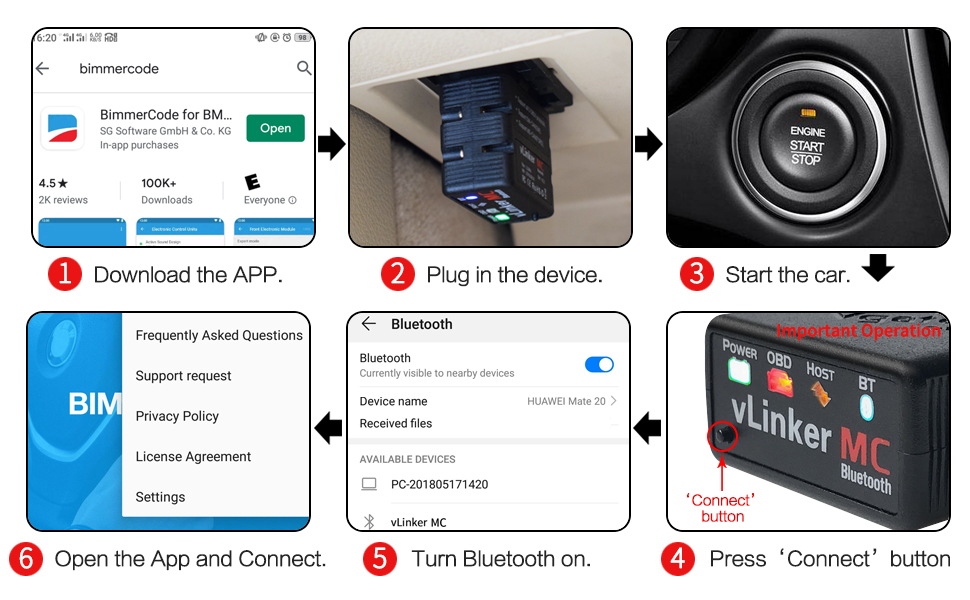

# Android System Operation Steps
-
Insert the product into the OBD interface of the car.
-
Turn ignition to Key On Engine Off Position.
-
Turn on Bluetooth on the phone.
-

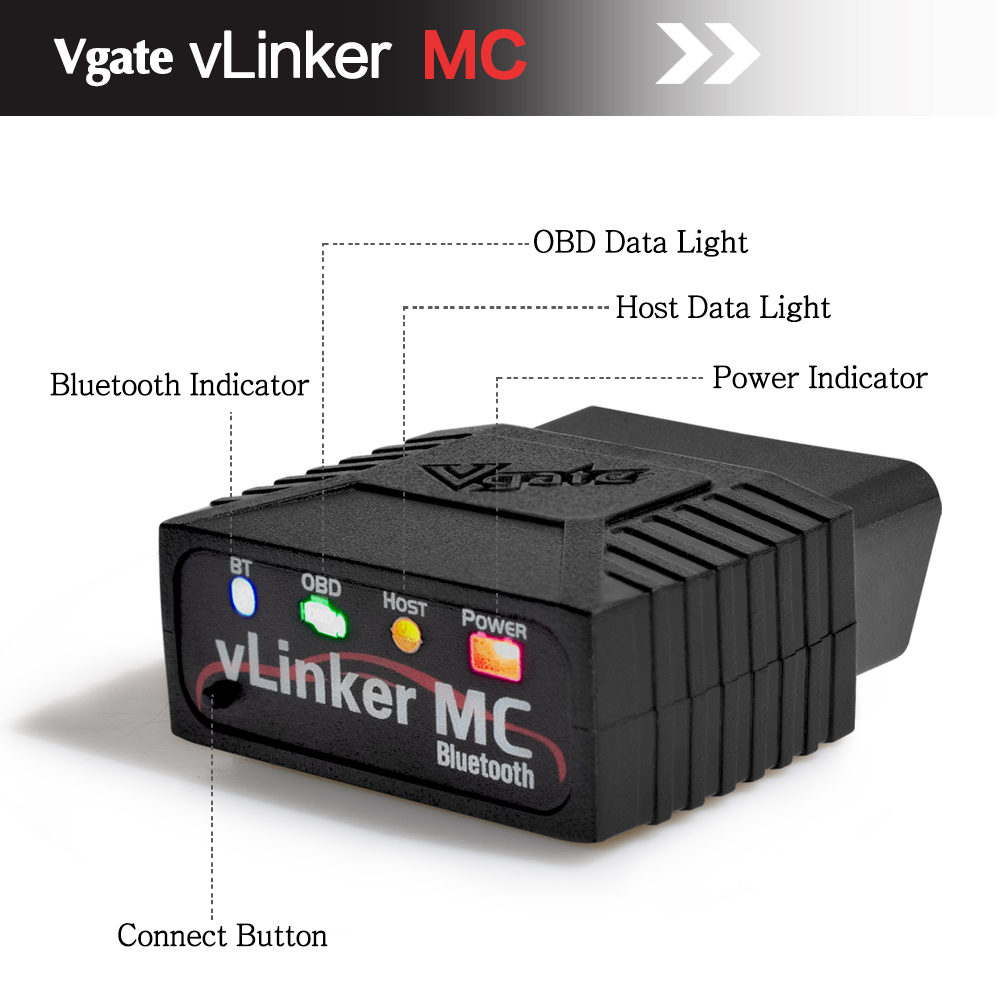

After pressing the black button on the product, the device name can be found on the phone. (important Operation)
-
Search for the device name "vlinker MC" and click Pair.
-
Enter the pairing code: 1234 . If the pairing is successful, you can open the APP to set up the connection.
* In the steps of APP operation, since different APPs have different setting and connection steps, please operate according to the relevant information on the APP's official website.
