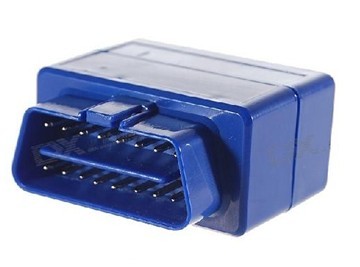

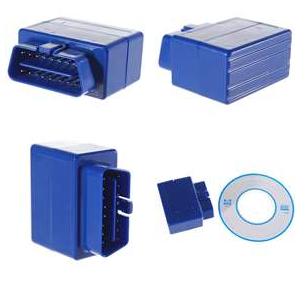

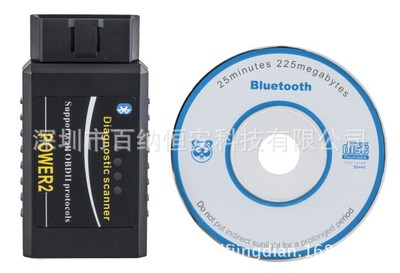

bluetooth ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols

• Works with all OBD-II compliant vehicles
• Wireless (Bluetooth)
• Software included for Palm, PDA
• Software included for Windows PC
• Software included for Windows Smartphone
• Supports ISO 9141, KWP2000
• Supports SAE J1850
• Supports CAN bus

Functions:
• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
• Clear trouble codes and turn off the MIL ("Check Engine" light)
• Display current sensor data, including:
• Engine RPM
• Calculated Load Value
• Coolant Temperature
• Fuel System Status
• Vehicle Speed
• Short Term Fuel Trim
• Long Term Fuel Trim
• Intake Manifold Pressure
• Timing Advance
• Intake Air Temperature
• Air Flow Rate
• Absolute Throttle Position
• Oxygen sensor voltages/associated short term fuel trims
• Fuel System status
• Fuel Pressure
• Many others...

Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

最新版藍牙ELM327是當下汽保市場上共享的芯片名稱，其功能非常強大，可測車型眾多。 無論是產品性能還是產品做工工藝，均獲得客戶的高度認可。

配對碼：0000

輸出協議:

RS232電腦需要配藍牙適配器，有效距離三十米。

本產品支持1996年以后生產的所有采用OBD-Ⅱ協議的車型（包括 VPW, PWM, ISO, KWP 2000, CAN 協議）。是最新的基于個人電腦(PC)的掃描工具?？梢园旬a(chǎn)品連接到筆記本電腦、臺式電腦或手機上，用來讀取故障碼并知道故障碼的含義、清除汽車的故障碼、燃油消耗量監測、顯示傳感器的數據流（如轉速、水溫等等）……功能非常強大！

支持的OBD-II協議：
ISO15765-4 (CAN)
ISO14230-4 (KWP2000)
ISO9141-2
J1850 VPW
J1850 PWM

輸出接口：藍牙
LED指示燈：OBD 發射/接收， RS232 發射/接收，電源
操作電壓： 12V，（帶短路/過電壓保護功能）
