點擊圖片查看原圖
| 產(chǎn)地 |
佛山
|
是否進口 |
否
|
加工定制 |
是
|
| 貨號 |
老款晶元V1.5
|
類型 |
汽車故障診斷儀
|
電壓 |
12（V）
|
| 工作溫度 |
-20-60（℃）
|
型號 |
elm327
|
主要下游平臺 |
wish,速賣通,獨立站,LAZADA,ebay
|
| 主要銷售地區(qū) |
東北亞,東南亞,歐洲,中東,非洲,南美,北美
|
是否跨境出口專供貨源 |
是
|
This item doesn't work on IOS. If you need an item which works on IOS, please buy our WIFI OBDII.
Project Bluetooth password:1234
The adapter does not support all protocols. Please check the protocols of your car model before you make order. We do not accept dispute caused by protocol problem.
Highlights:
---The newly developed wireless scan tool.
---It supports most OBD-II protocols.
---Bluetooth connection,no Batteries,Cables,or Switches.
---Wireless (Bluetooth) 5~10 meter
---Retrieve Fault Codes (DTCs) and clear Check Engine lights.
Functions:
1.Read diagnostic trouble codes,both generic and manufacturer-specific,and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data,including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
Many others...
Specifications:

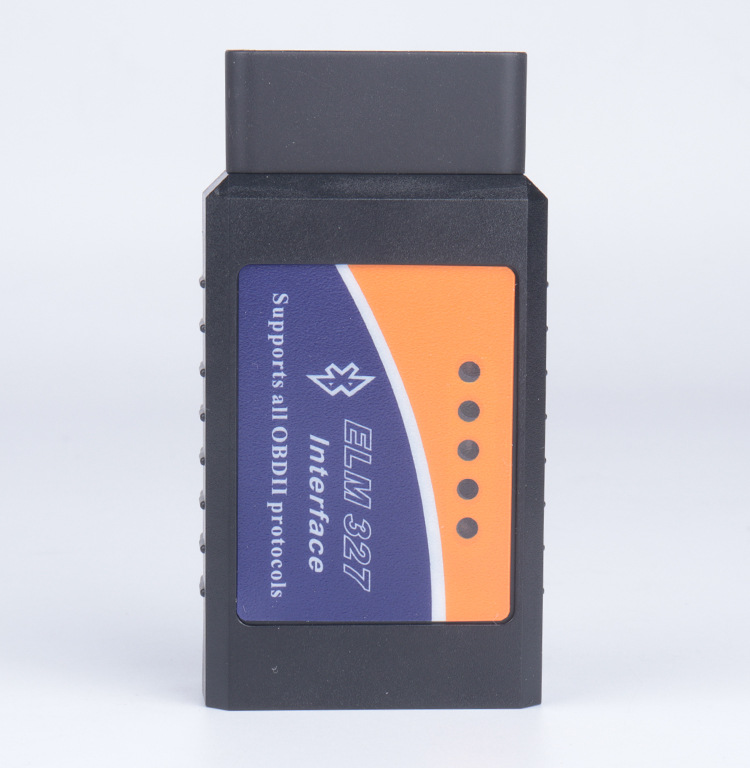

1. Mini ELM327 Bluetooth Hardware
2. Quick-Setup Instructions
3. Software Download (includes EasyOBD-II, OBD Gauge,OBD Logger,OBDSA,PyOBD,RealScan,ScanMaster,VitalScan,wOBD Crazy and more)
4. Supports all OBD-II Protocols (ISO15765-4 (CAN),ISO14230-4 (KWP2000),ISO9141-2,J1850 VPW,J1850 PWM)
5. Read and Clear Trouble Codes (MIL 'Check Engine')
6. Display current sensor data
7. Supports Multi-Language 12kinds:
Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish
Multi-Protocol Support:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP (fast init,10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID,500 Kbaud)
7. ISO15765-4 CAN (29bit ID,500 Kbaud)
8. ISO15765-4 CAN (11bit ID,250 Kbaud)
9. ISO15765-4 CAN (29bit ID,250 Kbaud)
A.SAE J1939 CAN (29bit ID,250*Kbaud)
B.USER1 CAN (11*bit ID,125*Kbaud)
C.USER2 CAN (11*bit ID,50*kbaud)
*default settings (user adjustable)
Compatibility:
1. Works with Android Torque (Suggested)
2. Works with OBD-II Complaint Vehicles
3. Supported Software Compatible for Windows,OSX,Palm,Pocket-PC,Linux,Android,DOS,and Windows Smartphone
Package Included:

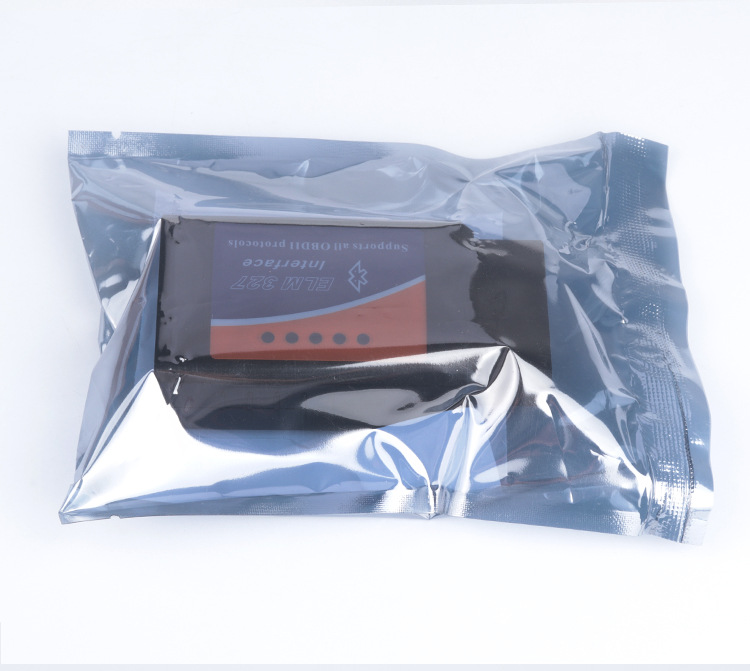

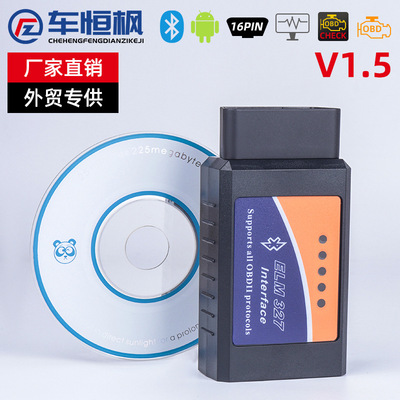

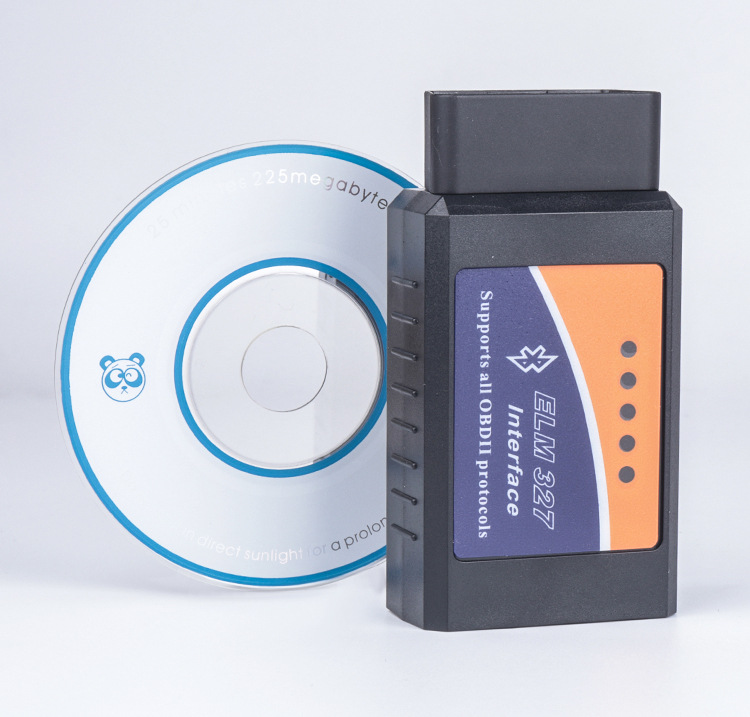

1 x ELM327 Bluetooth
1 x CD-ROM
