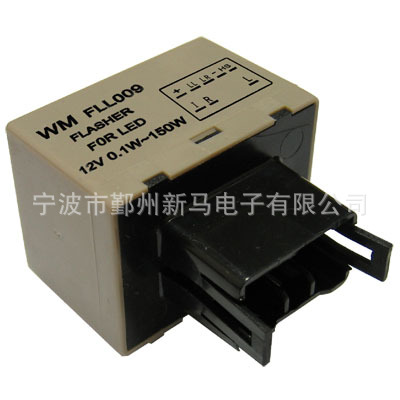

點擊圖片查看原圖
|
Features l Suitable for flasher light during car turning； l High sensitive and stable electronic timing； l Wide operating voltage, temperature range and long life； l Standard terminals, usage and Replacement easily； l With ticking sound。 |
Ordering Information訂貨說明
|
WM FLL009 |
- 12 |
|
|
|
|
|
||
|
1 |
2 |
|
|
|
|
|
||
|
1 Part number型號：WM FLL009 |
2 Coil rated Voltage(VDC)線圈額定電壓： 12: 12V；24: 24V |
|||||||
Technical Characteristics性能參數
|
Rated Voltage額定電壓 |
12VDC，24VDC |
|
Operating Voltage工作電壓 |
11VDC ~ 15VDC，22VDC ~ 30VDC |
|
Test Voltage試驗電壓 |
13VDC ± 0.2VDC，26VDC ± 0.4VDC |
|
Test Temperature試驗溫度 |
20℃ ± 2℃ |
|
Switch Load切換負載 |
0.1W ~ 150W (0.02A ~ 20A) |
|
Max Power最大負載 |
150W |
|
Flashing Frequency閃光頻率 |
60 ~ 120 times per minute |
|
Duty Ratio占空比 |
30% ~ 70% |
|
Operating Temperature環境溫度 |
-40°C ~ +80°C |
|
Life 壽命 |
400 working hours |
|
Weight重量(Approx.) |
30g |
