點擊圖片查看原圖
| 產地 |
內地
|
是否進口 |
否
|
訂貨號 |
寶馬汽車故障檢測儀
|
| 加工定制 |
否
|
貨號 |
寶馬汽車故障檢測儀
|
類型 |
汽車電腦診斷儀
|
| 電壓 |
12（V）
|
工作溫度 |
常溫（℃）
|
品牌 |
OBD2
|
| 型號 |
NEXT汽車故障檢測儀
|
適用車型 |
寶馬
|
主要下游平臺 |
wish,亞馬遜,速賣通,獨立站,ebay
|
Top 3 reasons to get BMW ICOM Next:
1.The Latest Version of BMW ICOM NEXT A Diagnostic Head for BMW, MINI, Rolls-Royce BMW-Model.
2.Support WIFI.
3.Can Work together with ICOM Software we provided.
Work OK with the Internet and Printer.
1.The Latest Version of BMW ICOM NEXT A Diagnostic Head for BMW, MINI, Rolls-Royce BMW-Model.
2.Support WIFI.
3.Can Work together with ICOM Software we provided.
Work OK with the Internet and Printer.

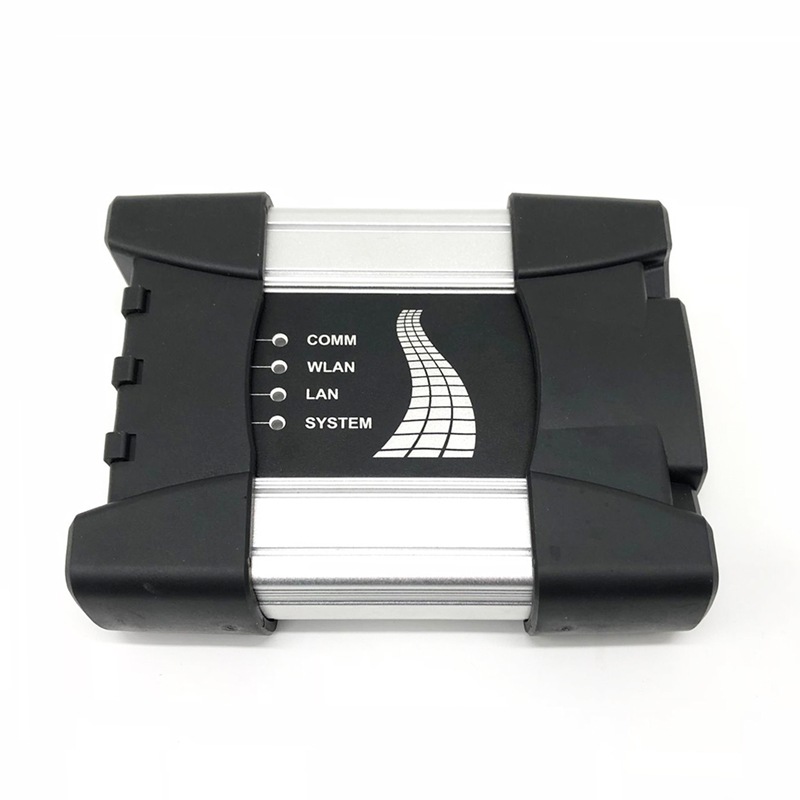

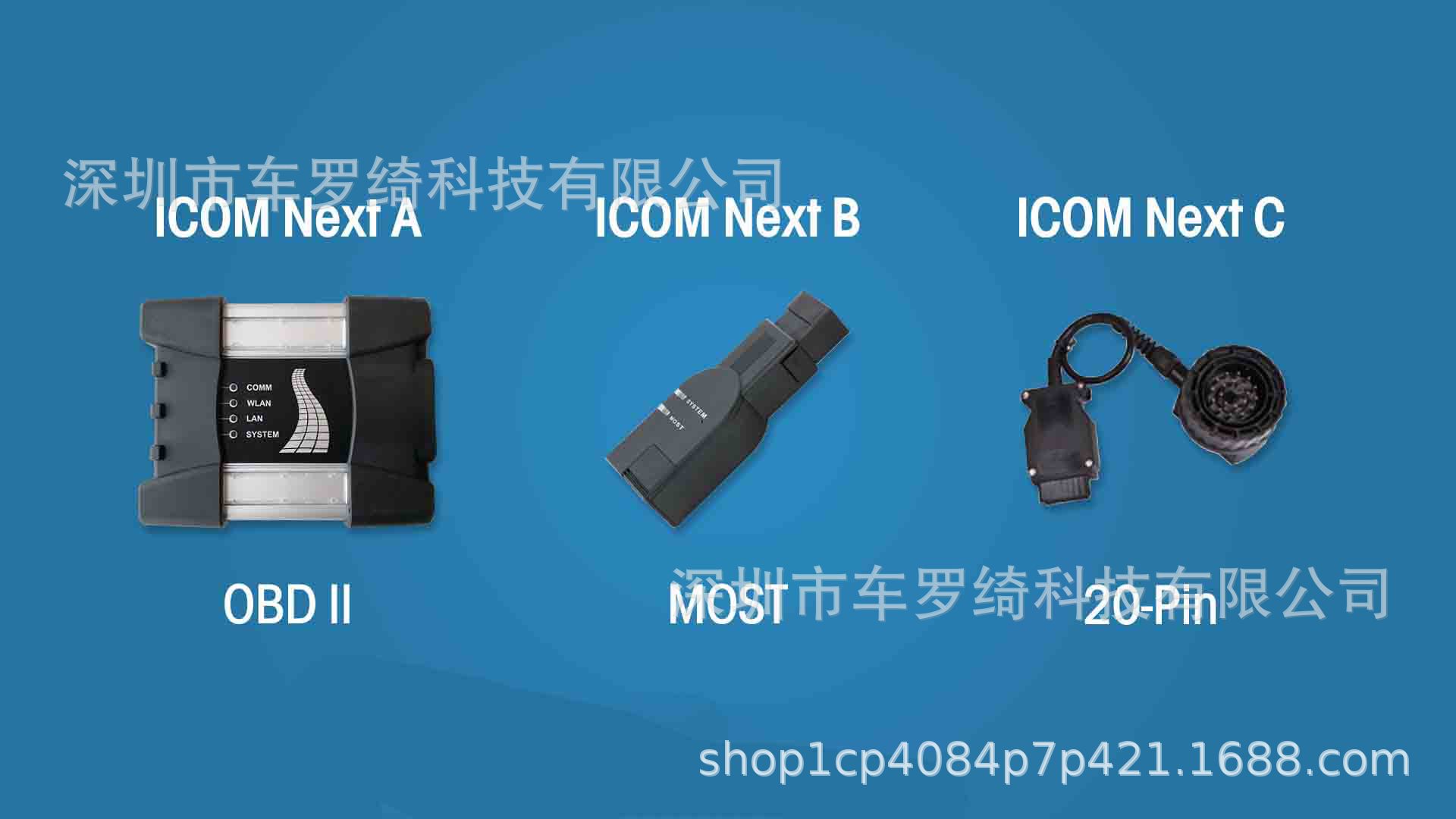

2017 BMW ICOM NEXT A + B + C WIFI NEW GENERATION OF ICOM A2
Top 5 reasons to get BMW ICOM Next:
1.Latest Version of BMW ICOM NEXT Diagnostic Tool for BMW, MINI, Rolls-Royce BMW-Model,have the same functions and appearance with the original BMW ICOM Next.
2. Support WIFI, If you do not need WIFI, you can chooseBMW ICOM Next (SP269).
3.Backwards compatible to car adapters (ICOM B, C), and work with motorcycle adapters(ICOM D, E) which can supportBMW Motorcycle till the year 2016.
4.If work withLatest ICOM Software 2017.07V(SS197-7B)on our site, can support cars till the year 2017,also Support BMWW & MINI full system diagnosing and offline programming.
5.If you needWIFI ICOM Next with Software, please choose (SP269-B1). If you need WIFI ICOM Next Installed well Before Shipping, please chooseWIFI BMW ICOM Installed on Lenovo T410 Ready to USE( SP269-BL)on our site.
The BMW ICOM Next Software Language Support :
1.Latest Version of BMW ICOM NEXT Diagnostic Tool for BMW, MINI, Rolls-Royce BMW-Model,have the same functions and appearance with the original BMW ICOM Next.
2. Support WIFI, If you do not need WIFI, you can chooseBMW ICOM Next (SP269).
3.Backwards compatible to car adapters (ICOM B, C), and work with motorcycle adapters(ICOM D, E) which can supportBMW Motorcycle till the year 2016.
4.If work withLatest ICOM Software 2017.07V(SS197-7B)on our site, can support cars till the year 2017,also Support BMWW & MINI full system diagnosing and offline programming.
5.If you needWIFI ICOM Next with Software, please choose (SP269-B1). If you need WIFI ICOM Next Installed well Before Shipping, please chooseWIFI BMW ICOM Installed on Lenovo T410 Ready to USE( SP269-BL)on our site.
The BMW ICOM Next Software Language Support :
American English, British English, German, Spanish, French, Italian, polish, Portuguese, Turkish, Czech, Swedish, Dutch, Indian, Greek, Russian, Simplified Chinese, Traditional Chinese, Japanese, Korean and Thai.
Improved Functionality and Performance:
1. Gbit workshop LAN, backwards compatible
2. Preparation for Gbit LAN on vehicle OBD(cars do not yet support this and interface not yet defined,ICOM Next hardware adaptation will be necessary for future Gbit car interface,will cause adaptation costs)
3. Faster start-up time and high throughput
4. Through high-performance, low-power ARM SoC
5. Improved handling
6. More flexible OBD cable
7. Lighted button for logs etc
BMW Software Compagible wirth ICOM Next A:
ISPI NEXT—BMW ISPI NEXT is latest generation after service tool for BMW, these brief instructions describe the basic functions of the AIR application (Aftersales Information Research) in Service. For the Diagnostic, it use IPSI (Rheingold) and ISPI Next for Coding Programming functions.
ISTA/D— Integrated Service Technical Application Diagnostic. ISTA/D is used to diagnose BMW all series and models from all systems.
ISTA/P— Integrated Service Technical Application/Programming. ISTA/P is used to process all coded, programmed and enable-dependent control modules in BMW Group vehicles.
Rheingold—Diagnostic and repair guide, including Diagrams and disassembly Figure
KSD—BMW KSD (Kaufmännische Service Daten, i.e. Commercial Service Data) is a collection of invaluable data for determining labor hours, inspection sheets and general service methods. There’s also information about wheels and rims for the various models.
EasyConnect— Used to Configure the Environment Parameter of Engineer Software for E series, can activate or release ICOM Port
IToolRadar— Used to recognize ICOM, activate or release ICOM Port
ETK— Accessories Catalog
EDIABAS Tool32— Engineer Software for E series, able to run directly
INPA— Engineer Software for E series, for diagnosis
NCS Expert Tool—- Engineer Software for E series, for coding
WinKFP—Engineer Software for E series, for programming
E-sys — Engineer Software for F series (available for programming and coding)
BMW Standard tool
Coding Database
Coding Tool
BMW ICOM NEXT Communications
1pc x BMW ICOM NEXT A+B+C
1pc x BMW 20pin Cable
1pc x USB Cable
1pc x LAN Cable

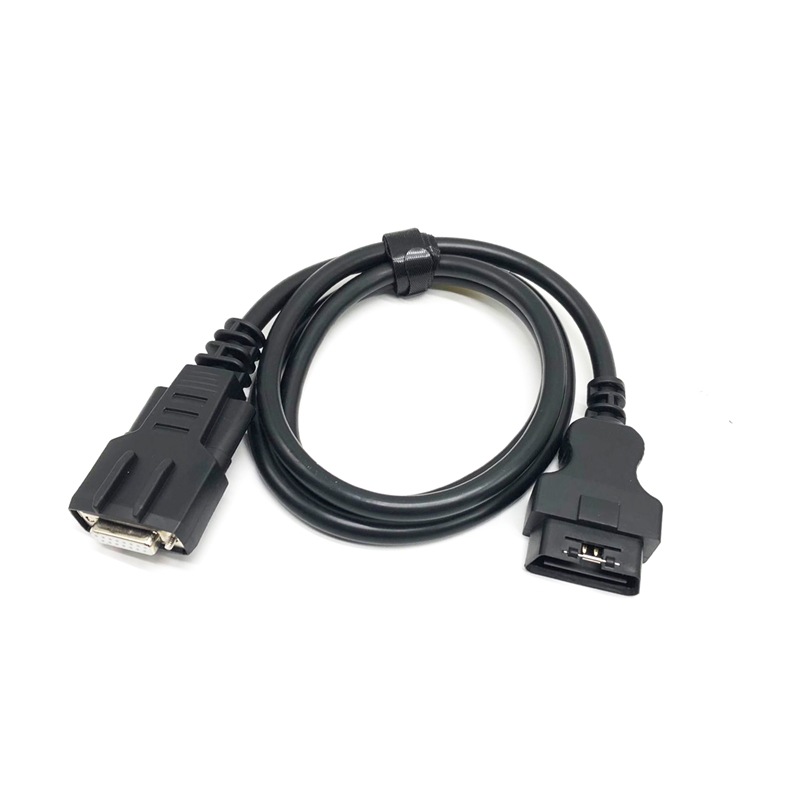

1pc x OBD Cable
1pc x Optical Fiber
ICOM NEXT ABC Specifications:
Zeroization of data on tamper detection
Secure supply chain assurance
Key storage using physically un-clonable function
CRI Pass-Through DPA Patent Portfolio
Advanced cryptographic Services
BMW Software Compagible wirth ICOM Next A:
ISPI NEXT—BMW ISPI NEXT is latest generation after service tool for BMW, these brief instructions describe the basic functions of the AIR application (Aftersales Information Research) in Service. For the Diagnostic, it use IPSI (Rheingold) and ISPI Next for Coding Programming functions.
ISTA/D— Integrated Service Technical Application Diagnostic. ISTA/D is used to diagnose BMW all series and models from all systems.
ISTA/P— Integrated Service Technical Application/Programming. ISTA/P is used to process all coded, programmed and enable-dependent control modules in BMW Group vehicles.
Rheingold—Diagnostic and repair guide, including Diagrams and disassembly Figure
KSD—BMW KSD (Kaufmännische Service Daten, i.e. Commercial Service Data) is a collection of invaluable data for determining labor hours, inspection sheets and general service methods. There’s also information about wheels and rims for the various models.
EasyConnect— Used to Configure the Environment Parameter of Engineer Software for E series, can activate or release ICOM Port
IToolRadar— Used to recognize ICOM, activate or release ICOM Port
ETK— Accessories Catalog
EDIABAS Tool32— Engineer Software for E series, able to run directly
INPA— Engineer Software for E series, for diagnosis
NCS Expert Tool—- Engineer Software for E series, for coding
WinKFP—Engineer Software for E series, for programming
E-sys — Engineer Software for F series (available for programming and coding)
BMW Standard tool
Coding Database
Coding Tool
How to use BMW ICOM NEXT?
1.Connect the car with icom or icom a2;
2. Connect the icom lan-cable with the computer when the system light stop flashing.Otherwise, the icom ista-p program will shut off automatically if you have firstly connected the device with the computer directly.
Expert Mode with NCS, E-SYS and so on
Eeay to install...only thing you need to do is insert it into laptop!!!
No need dongle
If you need to do programming job, please make sure your laptop has 4GB ram at least.
2. Connect the icom lan-cable with the computer when the system light stop flashing.Otherwise, the icom ista-p program will shut off automatically if you have firstly connected the device with the computer directly.
Expert Mode with NCS, E-SYS and so on
Eeay to install...only thing you need to do is insert it into laptop!!!
No need dongle
If you need to do programming job, please make sure your laptop has 4GB ram at least.
How to updat BMW ICOM NEXT Firmware?
First, install ISTA-D software on your system so you can use it to install the firmware on your ICOM.
Next, start ISTA-D with ICOM connected to your car (Don’t need KL15, KL30 13.8V on pin 16 and ground on 4+5 is enough)
Then, go to connection manager and start the update.
BMW ICOM NEXT Reviews:
ICOM Next is faster than the old bmw icom. It is also better built IMHO.
And 2017 Next is WIFI available also.
It handles multiprogramming and coding quite nicely.
Gets the job done much faster if flashing the complete vehicle.
Another benefit to Next will be compatibility for future cars.

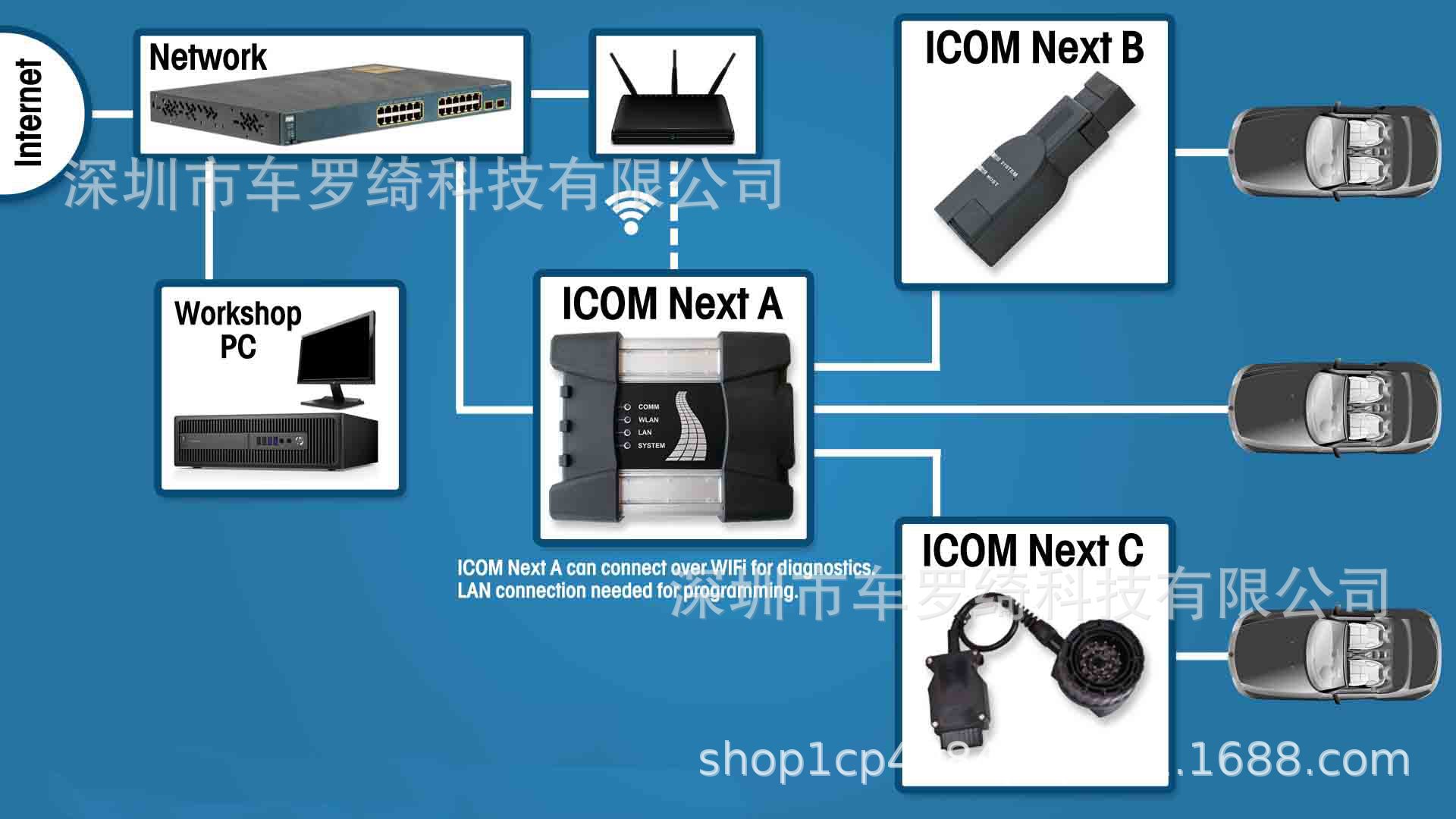

BMW ICOM NEXT and Connections
BMW ICOM NEXT Communications
![]()

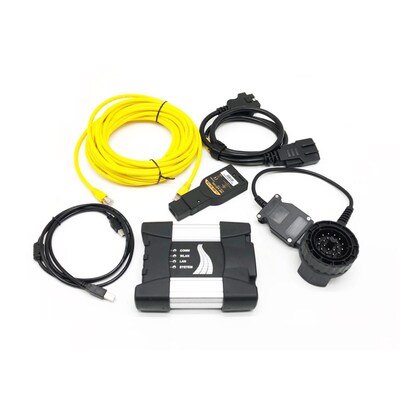

BMW ICOM NEXT Package includes:
1pc x BMW ICOM NEXT A+B+C1pc x BMW 20pin Cable
1pc x USB Cable
1pc x LAN Cable
1pc x OBD Cable
1pc x Optical Fiber
