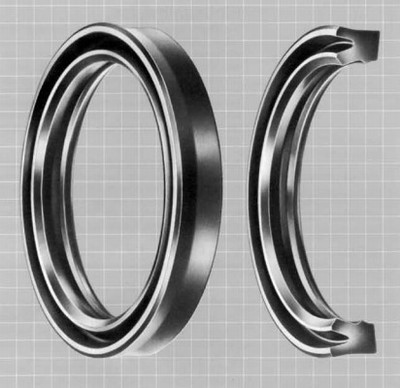

parker密封 B3/BS活塞桿Bs-B3型活塞桿密封圈
B3型活塞桿密封是一種由兩道密封唇且在外徑處為緊密配合的唇形密封(B3型有兩道密封唇)，主要用于重載行走機械和靜壓中的活塞桿和塞柱的密封.溝槽和直徑尺寸符ISO5597 P50081和ISO3320國際標準.
標準材質:密封體 P5008 邵氏硬度A約為93的聚胺酯材質.
如有特殊要求(壓力,溫度,速度等,以及特殊工作介質),parker也可以根據您的要求,特別生產.
工作壓力:≤400bar
工作溫度:-35~+110℃,介質:液壓油(礦物油基).
表面速度:≤0.5m P5008s.
B3型規格尺寸
規格尺寸(d*D*H)PARKER代碼
4*12*6B3 0412 P5008
6*13*5B3 0613 P5008
6*14*5.7B3 0614 P5008
8*14*5B3 0814 P5008
8*16*5.7B3 0816 P5008
9*14.5*5B3 0914 P5008
9*16*5.7B3 0916 P5008
10*14*3.7B3 1015 P5008
10*16*4.5B3 1016 P5008
10*17*5.7B3 1017 P5008
10*18*5.7B3 1018 P5008
12*19*5B3 1211 P5008
12*20*5.7B3 1212 P5008
12*22*7.3B3 1222 P5008
12.7*19.05*6.35B3 1207 P5008
14*21*5B3 1421 P5008
14*22*7.3B3 1422 P5008
14*24*7.3B3 1424 P5008
15*25*8B3 1426 P5008
16*22*5B3 1620 P5008
16*24*5.7B3 1624 P5008
16*26*7.3B3 1626 P5008
18*24*5B3 1824 P5008
18*25*5B3 1826 P5008
18*26*5B3 1825 P5008
18*28*7.3B3 1827 P5008
18*28*8B3 1828 P5008
20*26*5B3 0226 P5008
20*28*5.7B3 2028 P5008
20*30*7.3B3 2030 P5008
22*28*5B3 2225 P5008
22*29*5B3 2229 P5008
22*30*5.7B3 2230 P5008
22*32*7.3B3 2232 P5008
22*32*6B3 2525 P5008
25*33*5.7B3 2532 P5008
25*33*6.5B3 2533 P5008
25*35*7.3B3 2535 P5008
25*40*10B3 2537 P5008
25.4*31.75*6.35B3 2540 P5008
28*36*5.7B3 2836 P5008
28*36*8B3 2837 P5008
28*38*7.3B3 2838 P5008
30*38*5.7B3 3003 P5008
30*38*8B3 3002 P5008
30*40*10B3 3005 P5008
30*45*10B3 3015 P5008
31.75*38.1*6.35B3 3175 P5008
32*40*6.7B3 3240 P5008
32*42*7.3B3 3242 P5008
32*42*10B3 3243 P5008
32*45*10B3 3245 P5008
32*47*10B3 3020 P5008
35*43*6B3 3506 P5008
35*45*7B3 3544 P5008
35*45*10B3 3545 P5008
36*44*5.7B3 3644 P5008
36*46*7.3B3 3646 P5008
36*51*10B3 3651 P5008
38*50*10B3 3800 P5008
40*48*5.7B3 4002 P5008
40*48*8B3 4003 P5008
40*50*7.3B3 4004 P5008
40*50*8B3 4006 P5008
40*50*10B3 4005 P5008
40*55*11.4B3 4007 P5008
45*53*5.6B3 4050 P5008
45*53*8B3 4502 P5000
45*53*10B3 4553 P5008
45*55*5.8B3 4554 P5008
45*55*7.3B3 4555 P5008
45*55*10B3 4556 P5008
45*60*11.4B3 4561 P5008
50*58*8B3 5002 P5008
50*60*7.3B3 5004 P5008
50*60*10B3 5006 P5008
50*65*11.4B3 5065 P5008
50*70*14B3 5067 P5008
50.8*63.5*9.5B3 5068 P5008
55*65*7.3B3 5565 P5008
55*65*10B3 5564 P5008
55*65*12B3 5570 P5008
55*70*10B3 5070 P5008
55*67*10B3 5567 P5008
56*66*6.5B3 5666 P5008
56*71*8.6B3 5668 P5008
56*71*11.4B3 5671 P5008
57.15*69.85*9.53B3 5077 P5008
58*68*7.3B3 5868 P5008
60*68*8B3 6068 P5008
60*70*10B3 6070 P5008
60*75*10B3 6074 P5008
60.33*73.03*9.53B3 6033 P5008
63*73*6.5B3 6372 P5008
63*73*12B3 6373 P5008
63*75*10B3 6375 P5008
63*78*10B3 6377 P5008
63*78*11.4B3 6378 P5008
65*73*8B3 6502 P5008
65*75*7B3 6076 P5008
65*75*12B3 6075 P5008
65*80*12B3 6504 P5008
65*85*11.4B3 6578 P5008
70*78*8B3 7070 P5008
70*80*6.5B3 7079 P5008
70*80*7B3 7078 P5008
70*80*12B3 7080 P5008
70*82*8.7B3 7082 P5008
70*85*11.4B3 7085 P5008
75*85*7B3 7585 P5008
75*85*11.4B3 7585 P5008
75*90*12B3 7590 P5008
75*90*10B3 7590 P5008
76.2*88.9*9.53B3 7591 P5008
80*90*7B3 8088 P5008
80*90*10B3 8089 P5008
80*90*12B3 8090 P5008
80*95*10B3 8093 P5008
80*95*11.4B3 8094 P5008
80*100*12B3 8099 P5008
82.55*95.25*9.53B3 8294 P5008
85*100*9B3 8509 P5008
85*100*12B3 8510 P5008
85*105*12B3 8505 P5008
88.9*101.6*9.53B3 8889 P5008
90*100*6.5B3 9001 P5008
90*102*9B3 9002 P5008
90*105*9B3 9004 P5008
90*105*11.4B3 9005 P5008
90*110*12B3 9009 P5008
92*105*9.5B3 9210 P5008
95*110*9B3 9505 P5008
95*115*12B3 9515 P5008
100*115*9B3 A015 P5008
100*120*14.5B3 A020 P5008
101.6*117.48*9.53B3 A060 P5008
105*120*10B3 A503 P5008
105*125*14.5B3 A505 P5008
110*125*9B3 B024 P5008
110*125*9.6B3 B025 P5008
110*130*14.5B3 B030 P5008
114.3*130.18*9.53B3 B044 P5008
120*140*15B3 C040 P5008
125*145*12B3 C244 P5008
125*145*14.5B3 C245 P5008
125.1*140.5*9.8B3 C224 P5008
127*142.86*9.35B3 C427 P5008
130*145*12B3 D045 P5008
130*150*12B3 D049 P5008
130*150*15B3 D050 P5008
139.7*155.58*9.53B3 D097 P5008
140*155*9.6B3 E055 P5008
140*160*14.5B3 E060 P5008
145*165*14.5B3 E065 P5008
150*170*15B3 F070 P5008
152.4*171.45*12.7B3 F072 P5008
160*180*15B3 G080 P5008
160*185*18.2B3 G085 P5008
170*200*18B3 H020 P5008
180*200*15B3 J020 P5008
180*205*18.2B3 J005 P5008
190*210*15B3 K005 P5008
200*225*18.2B3 L025 P5008
200*230*18B3 L030 P5008
210*230*15B3 L110 P5008
220*250*22.7B3 M050 P5008
225*250*18B3 M070 P5008
230*260*22.7B3 M110 P5008
250*280*22.7B3 N580 P5008
266.7*284*9.73B3 O005 P5008
280*300*15B3 P005 P5008
280*310*22.7B3 P010 P5008
B3型規格尺寸 JIS 標準
規格尺寸(d*D*H)PARKER代碼
12.5*20.5*5B3 012A P5008
14*22*5B3 014A P5008
15*23*5B3 015A P5008
16*24*5B3 016A P5008
18*26*5B3 018A P5008
19*26*6B3 019A P5008
20*25*5B3 020A P5008
20*28*5B3 020B P5008
20*30*6B3 020C P5008
22*30*5B3 022A P5008
22.4*30*5B3 022B P5008
25*33*5B3 025A P5008
25*35*5B3 025B P5008
25*40*9B3 025C P5008
28*35.5*5B3 028A P5008
28*40*5B3 028B P5008
29*35*5B3 029A P5008
30*37*6B3 030A P5008
30*40*6B3 030B P5008
30*40*7B3 030C P5008
30*45*9B3 030D P5008
30*45*10B3 030E P5008
31.5*41.5*6B3 031A P5008
32*40*6B3 032A P5008
32*42*6B3 032B P5008
32*42*7B3 032C P5008
32*48*10B3 032D P5008
33*43*10B3 033A P5008
34*50*12B3 034A P5008
35*42*7B3 035A P5008
35*45*6B3 035B P5008
35*45*7B3 035C P5008
35*50*9B3 035E P5008
35*50*10B3 035F P5008
35.5*45*6B3 035D P5008
36*44*6B3 036A P5008
36*46*6B3 036B P5008
36*46*7.3B3 036C P5008
36*48*8B3 036D P5008
38*48*6B3 038A P5008
40*46*7B3 040A P5008
40*48*6B3 040B P5008
40*50*6B3 040C P5008
40*50*7.3B3 040D P5008
40*50*8B3 040E P5008
40*55*9B3 040F P5008
40*60*12B3 040G P5008
45*53*8B3 045A P5008
45*55*6B3 045B P5008
45*55*8B3 045C P5008
45*56*7B3 045D P5008
45*55*10B3 045E P5008
45*60*9B3 045F P5008
45*60*10B3 045G P5008
45*65*12B3 045H P5008
50*58*8B3 050A P5008
50*60*6B3 050B P5008
50*60*7B3 050C P5008
50*60*8B3 050D P5008
50*63*8B3 050E P5008
50*63*10B3 050L P5008
50*65*9B3 050M P5008
50*65*10B3 050H P5008
50*66*12B3 050J P5008
50*70*9B3 050K P5008
50*70*12B3 050N P5008
50.8*63.5*9.52B3 051A P5008
53*63*6B3 053A P5008
55*65*6B3 055A P5008
55*65*8B3 055B P5008
55*68*10B3 055C P5008
55*70*9B3 055D P5008
55*70*10B3 055E P5008
55*71*10B3 055F P5008
55*71*12B3 055G P5008
55*75*12B3 055H P5008
56*66*6B3 056A P5008
56*66*6.5B3 056B P5008
57.15*73.03*9B3 057A P5008
60*70*6B3 060A P5008
60*70*10B3 060B P5008
60*73*10B3 060C P5008
60*75*9B3 060D P5008
60*76*10B3 060E P5008
60*76*12B3 060F P5008
60*80*12B3 060G P5008
63*73*6B3 063A P5008
63*78*11.5B3 063B P5008
63*83*12B3 063D P5008
63.5*76.2*9.52B3 063C P5008
65*75*6B3 065A P5008
65*78*10B3 065B P5008
65*80*9B3 065C P5008
65*80*10B3 065D P5008
65*80*12B3 065E P5008
65*85*10B3 065F P5008
65*85*12B3 065G P5008
67*77*6B3 067A P5008
70*80*6B3 070A P5008
70*83*10B3 070B P5008
70*85*9B3 070C P5008
70*85*10B3 070D P5008
70*90*12B3 070E P5008
71*81*6B3 071A P5008
72*87*9B3 072A P5008
75*85*6B3 075A P5008
75*88*10B3 075B P5008
75*90*9B3 075C P5008
75*90*10B3 075D P5008
75*95*12B3 075E P5008
76*88*6B3 076A P5008
77*92*9B3 077A P5008
80*90*6B3 080A P5008
80*90*8B3 080B P5008
80*93*9B3 080C P5008
80*93*10B3 080D P5008
80*95*9B3 080E P5008
80*95*10B3 080F P5008
80*100*12B3 080G P5008
85*100*9B3 085A P5008
85*100*10B3 085B P5008
85*105*12B3 085C P5008
89*105*12.7B3 089A P5008
90*100*6B3 090A P5008
90*105*9B3 090B P5008
90*105*10B3 090C P5008
90*110*10B3 090D P5008
90*110*12B3 090E P5008
90*110*13B3 090F P5008
95*110*9B3 095A P5008
95*110*10B3 095B P5008
95*115*12B3 095C P5008
97*112*9B3 097A P5008
98*113*9B3 098A P5008
100*110*6B3 100A P5008
100*112*14B3 100B P5008
100*115*9B3 100C P5008
100*115*10B3 100D P5008
100*120*12B3 100E P5008
100*120*15B3 100F P5008
105*120*9B3 105A P5008
105*120*10B3 105B P5008
105*120*12B3 105C P5008
105*125*15B3 105D P5008
110*125*9B3 110A P5008
110*125*10B3 110B P5008
110*130*10B3 110C P5008
110*130*12B3 110D P5008
110*130*16B3 110E P5008
112*125*9B3 112A P5008
112*132*15B3 112B P5008
115*130*9B3 115A P5008
115*130*10B3 115B P5008
115*135*12B3 115C P5008
115*135*16B3 115D P5008
118*133*9B3 118A P5008
120*135*9B3 120A P5008
120*135*10B3 120B P5008
120*140*10B3 120C P5008
120*140*12B3 120D P5008
120*140*16B3 120E P5008
125*140*19B3 125A P5008
125*145*12B3 125B P5008
127*147*16B3 127A P5008
130*145*9B3 130A P5008
130*145*10B3 130B P5008
130*150*12B3 130C P5008
135*150*16B3 135A P5008
135*150*9B3 135B P5008
136*150*8.5B3 136A P5008
140*150*7B3 140A P5008
140*155*9B3 140B P5008
140*160*12B3 140C P5008
140*165*12B3 140D P5008
140*150*6B3 140E P5008
145*160*9B3 145A P5008
150*165*9B3 150A P5008
150*170*12B3 150B P5008
155*170*9B3 155A P5008
155*165*6B3 155B P5008
156*171*10B3 155C P5008
160*175*9B3 160A P5008
160*180*12B3 160B P5008
165*180*9B3 165A P5008
170*185*9B3 170A P5008
170*190*12B3 170B P5008
175*190*9B3 175A P5008
175*200*12B3 175B P5008
180*20*12B3 180A P5008
180*200*16B3 180B P5008
190*210*12B3 190A P5008
200*220*12B3 200A P5008
200*225*16B3 200B P5008
210*230*12B3 210A P5008
220*240*12B3 220D P5008
225*250*16B3 225A P5008
230*250*12B3 230A P5008
230*255*16B3 230B P5008
230*255*19B3 230C P5008
240*260*12B3 240A P5008
250*270*16B3 250A P5008
260*285*19B3 260A P5008
300*330*19B3 300A P5008
320*350*18B3 320A P5008
360*390*22B3 360A P5008
BS型規格尺寸
規格尺寸(d*D*H)PARKER代碼
8*16*5.7BS 0816 P5008
9*16*5.7BS 0916 P5008
10*16*4.5BS 1016 P5008
10*17*5.7BS 1017 P5008
10*18*5.7BS 1018 P5008
12.7*19.05*6.35BS 1207 P5008
14*20*5.7BS 1420 P5008
14*22*7.3BS 1422 P5008
14*24*7.3BS 1424 P5008
16*24*5.8BS 1624 P5008
16*26*7.3BS 1626 P5008
20*30*7.3BS 2030 P5008
22*32*7.3BS 2232 P5008
25*33*5.7BS 2532 P5008
25*33*6.5BS 2533 P5008
25*35*7.3BS 2535 P5008
26*36*10BS 2605 P5008
28*36*7BS 2836 P5008
28*38*7.3BS 2838 P5008
30*40*10BS 3005 P5008
30*45*10BS 3030 P5008
32*42*7.3BS 3242 P5008
32*42*10BS 3243 P5008
32*45*10BS 3245 P5008
35*45*10BS 3545 P5008
35*47*16.5BS 3547 P5008
36*44*5.7BS 3644 P5008
36*46*7.3BS 3646 P5008
36*51*10BS 3651 P5008
37*47*10BS 3747 P5008
40*49.52*9.6BS 4049 P5008
40*50*10BS 4005 P5008
40*52*8BS 4008 P5008
40*55*11.4BS 4007 P5008
43*53*7.3BS 4051 P5008
45*53*5.6BS 4553 P5000
45*55*7.3BS 4555 P5008
45*55*10BS 4556 P5008
45*60*11.4BS 4561 P5008
46*56*10BS 4605 P5008
48*56*11.5BS 4856 P5008
50*60*7.3BS 5004 P5008
50*60*10BS 5006 P5008
50*65*11.4BS 5065 P5008
50.8*63.5*9.5BS 5085 P5008
52*62*10BS 5203 P5008
55*65*10BS 5564 P5008
55*67*10BS 5567 P5008
56*71*11.4BS 5609 P5008
60*68*13BS 6068 P5008
60*70*7.5BS 6069 P5008
60*70*10BS 6070 P5008
60*75*10BS 6074 P5008
63*71*8BS 6371 P5008
63*78*11.4BS 6378 P5008
63.5*76.2*9.53BS 6364 P5008
64*72*9.1BS 6472 P5008
65*73*11.5BS 6573 P5008
65*75*12BS 6075 P5008
65*85*11.4BS 6578 P5008
68*78*12BS 6805 P5008
70*80*12BS 7080 P5008
70*85*11.4BS 7085 P5008
75*88*10BS 7588 P5008
75*90*10BS 7590 P5008
78*86*11.5BS 7804 P5008
80*90*12BS 8090 P5008
80*95*11.4BS 8095 P5008
80*100*12BS 8099 P5008
85*93*11.5BS 8593 P5008
85*100*12BS 8510 P5008
85*105*12BS 8505 P5008
90*98*11.5BS 9098 P5008
90*105*11.4BS 9005 P5008
92*107*11.4BS 9203 P5008
95*115*12BS 9515 P5008
100*108*12BS A008 P5008
100*120*14.5BS A020 P5008
101.6*114.93*20.01BS A166 P5008
105*113*11.5BS A513 P5008
107*115*11.5BS A715 P5008
110*125*14.5BS B025 P5008
110*130*14.5BS B030 P5008
118*126*13BS B805 P5008
120*130*14BS C030 P5008
125*133*11.5BS C233 P5008
127*140.33*20.01BS C410 P5008
130*160*14.5BS D045 P5008
140*160*14.5BS E060 P5008
145*153*11.5BS E050 P5008
150*170*15BS F070 P5008
152*160*9.1BS F252 P5008
152.4*165.73*20.01BS F260 P5008
160*185*18.2BS G085 P5008
167*175*11.5BS G704 P5008
170*200*18BS H020 P5008
171*179*13BS H105 P5008
176*186*12BS H160 P5008
177.7*195*9.73BS H169 P5008
180*188*11.5BS JO88 P5008
193*201*11.5BS K003 P5008
200*211*12BS L005 P5008
200*225*18.2BS L025 P5008
209.55*226.77BS L008 P5008
220*250*22.7BS M050 P5008
223*231*11.5BS M060 P5008
228.5*246*22.7BS M085 P5008
230*260*22.7BS M110 P5008
250*280*22.7BS N580 P5008
266.7*284*9.73BS O005 P5008
280*310*18BS P058 P5008
拍前必看
======
由于密封件規格型號繁多，網頁顯示的價格和庫存非實際數值，請親們在拍付前務必先咨詢客服，以給您的報價和貨期為準。未經咨詢自助拍下的商品，我們概不發貨，望親諒解！大量規格因排版有限未能展示。請聯系客服對您所需規格進行咨詢報價。
拍付規則
======
按照客服報價的總金額，拍下相應的數量，然后留言寫您實際需要的型號，數量和相關事項。例如：您采購總金額是880元，客服給您的鏈接網頁標價是1元，您就拍880個產品，正好夠貨款。
| 產地 | 中國 | 品名 | 活塞桿密封 | 是否進口 | 否 |
| 牌號 | MHD | 形狀 | 通用型密封圈 | 貨號 | 1-1000 |
| 型號 | BS | 適用范圍 | 機械 | 是否標準件 | 標準件 |
| 性質 | 耐腐蝕,耐高溫,耐磨損 | 用途 | 軸用密封 | 品牌 | MHD |
